2022 Big Dog K-9

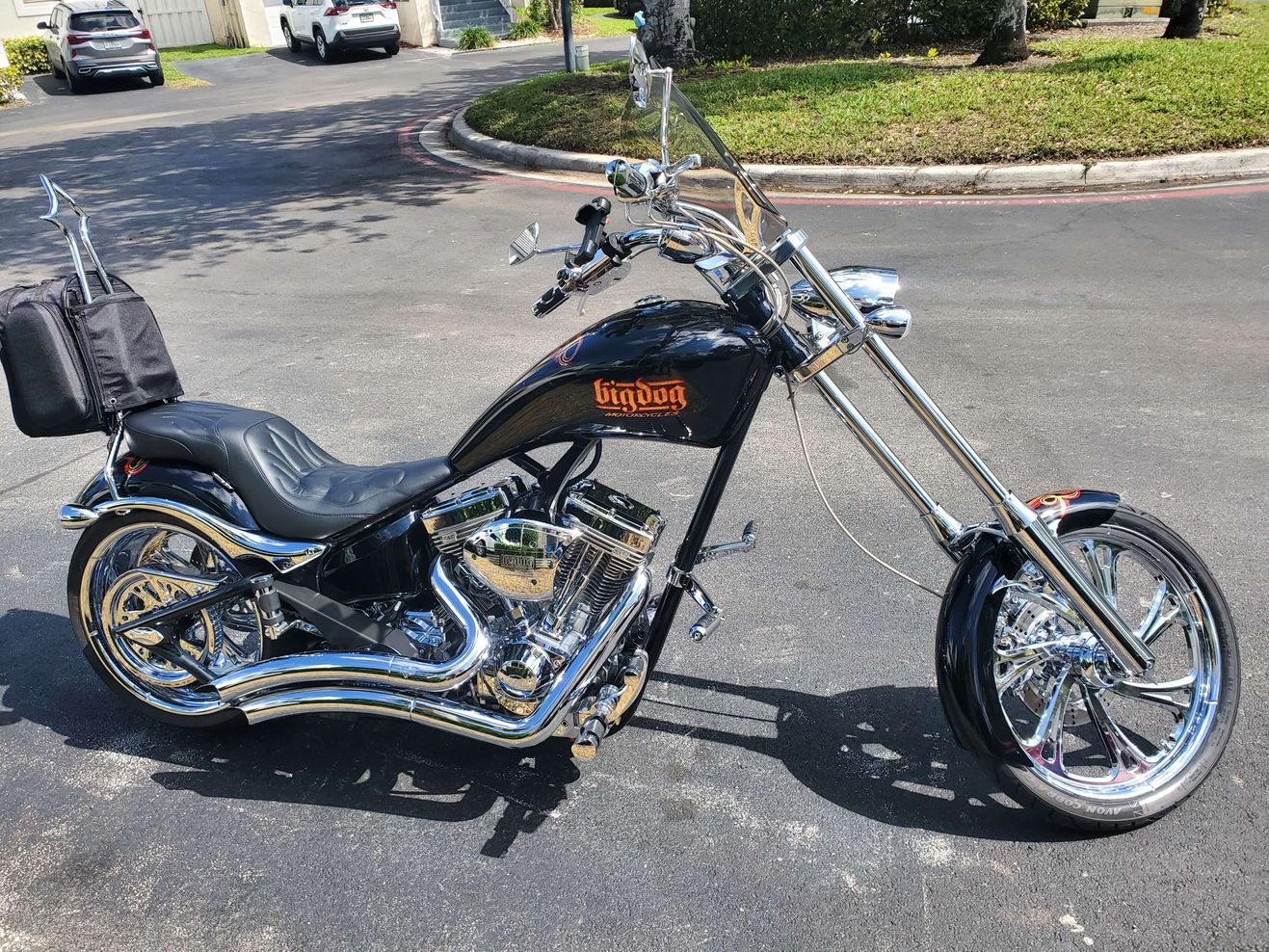

2022 BIG DOG K-9
A MODERN-DAY CHOPPER
With its freshly-redesigned fuel tank, the K9 has a striking street-presence. Sleek lines and increased fuel capacity compliment the iconic fat-rear-tire for a balanced profile. The K9 features a 300mm rear tire and 42-Degrees of rake. One Smooth Ride.
Who says choppers are only good for short commutes? The K9's fully-adjustable suspension, dual Progressive softail shocks,

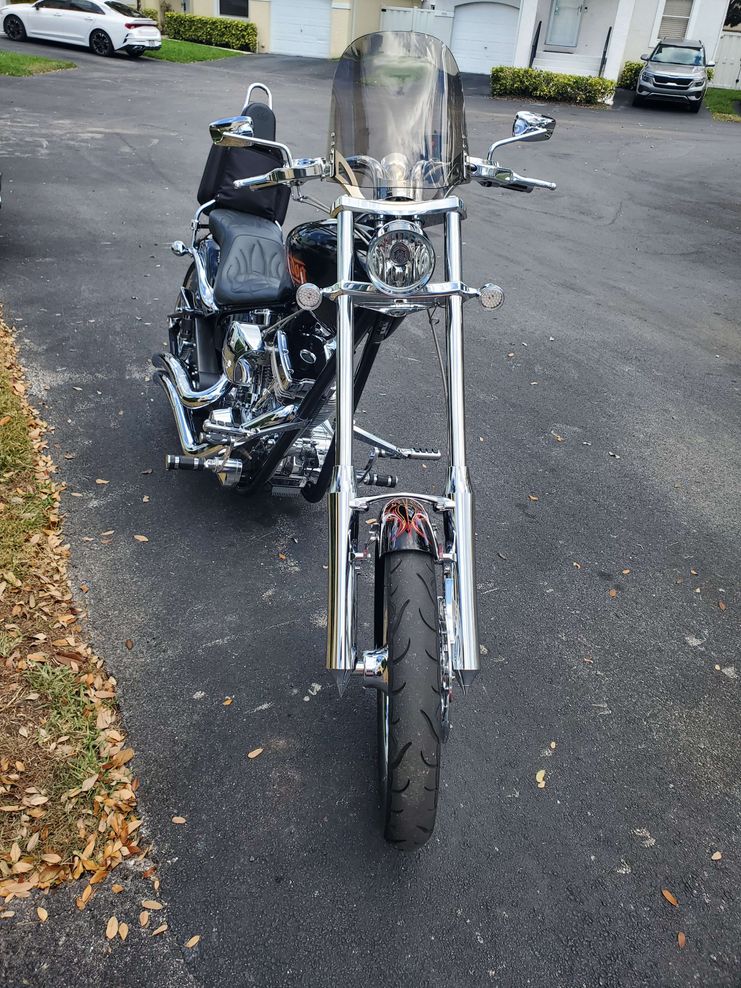

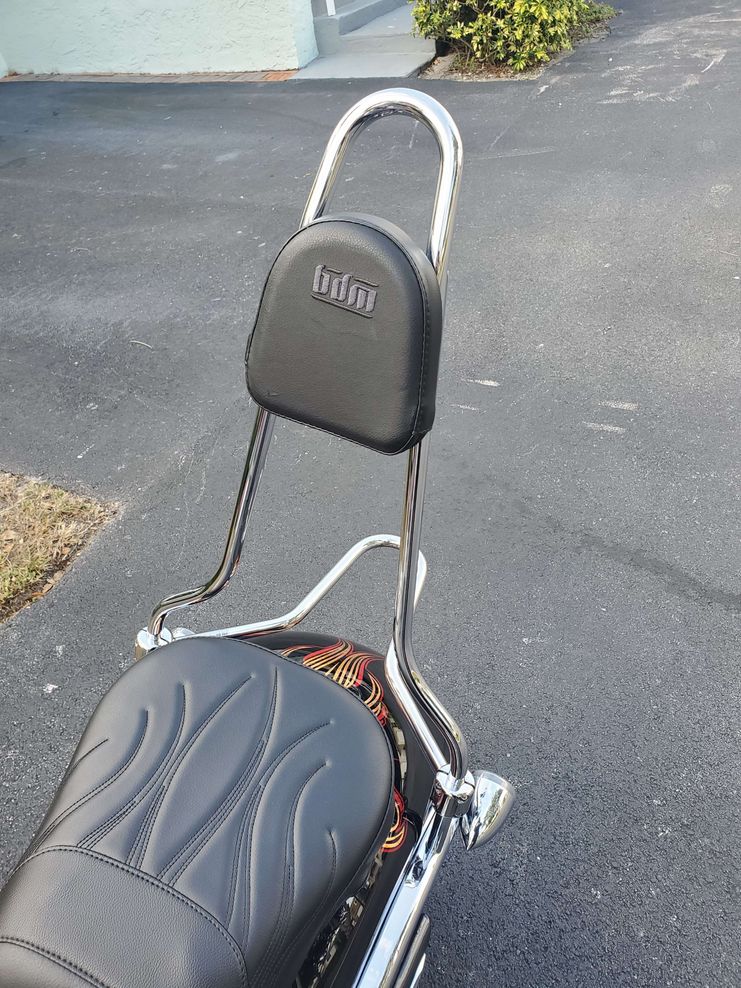

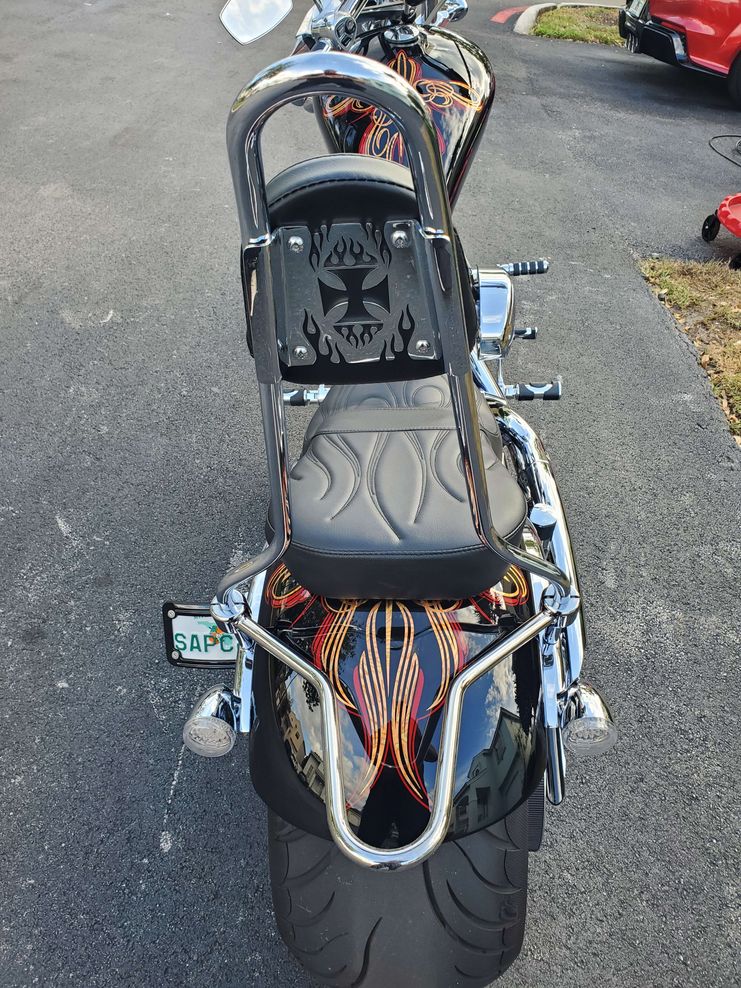

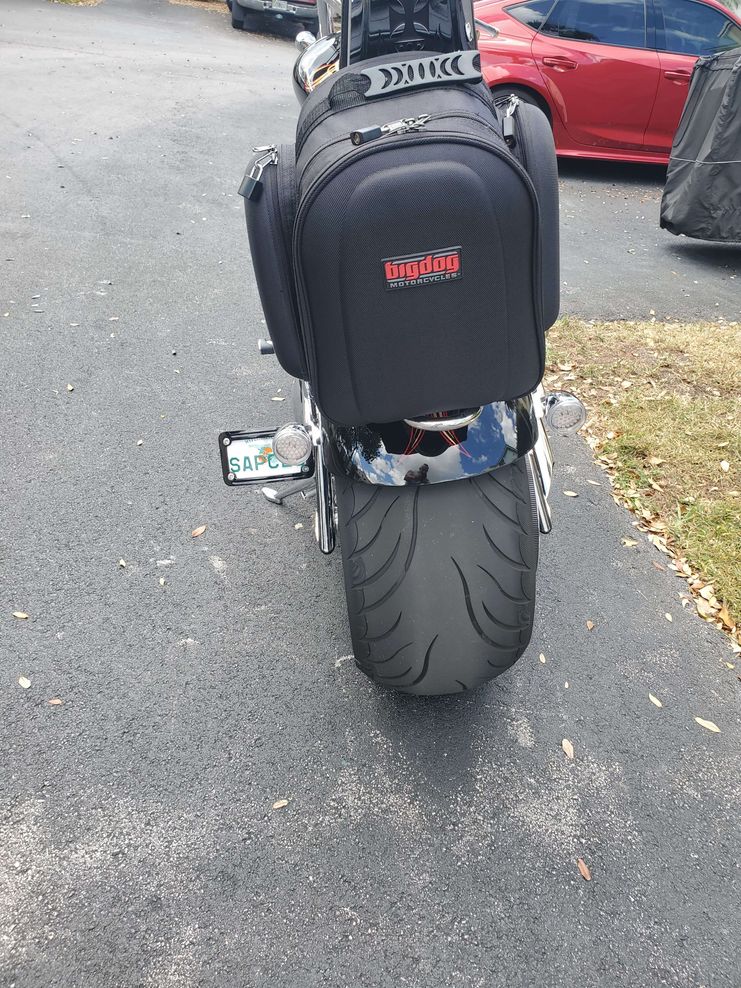

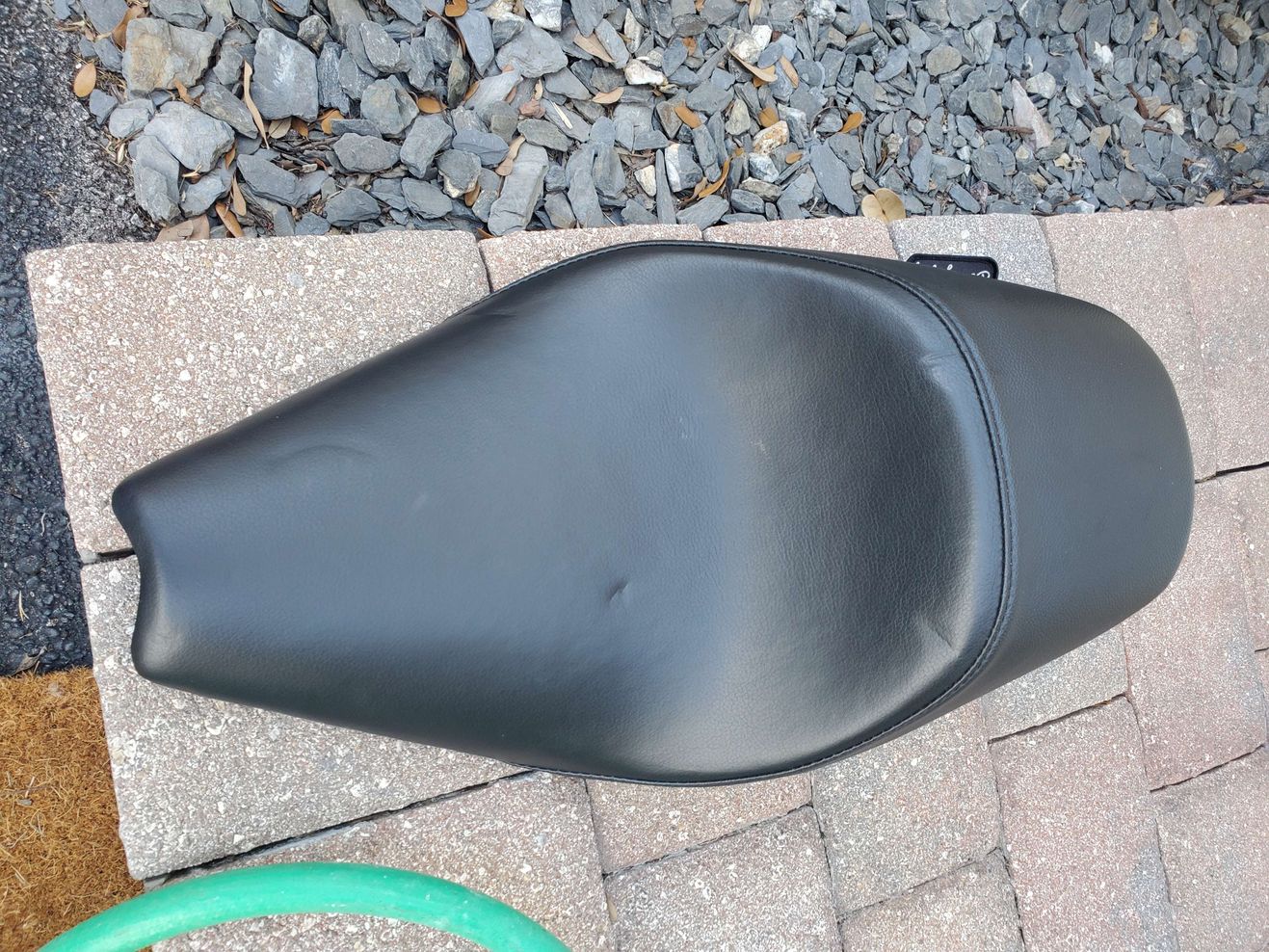

6-speed transmission, and precision-engineered chassis make racking up miles an afterthought. Add in the dual adjustable Danny  Gray Airhawk 2 up saddle and you are literally riding on air. Danny Gray single rider seat included. Smoked removable Windvest windscreen. Custom sissy bar and luggage rack. Fully adjustable billet highway pegs. Big Dog backpack luggage bag, all recently serviced 3 hole oil/fluid change, brand new tires, stage 1 clutch pack, custom painted Big Dog graphics and hand pinstriping with real gold inlays. bike turns heads, hooks hard, and is ready to rock your world.

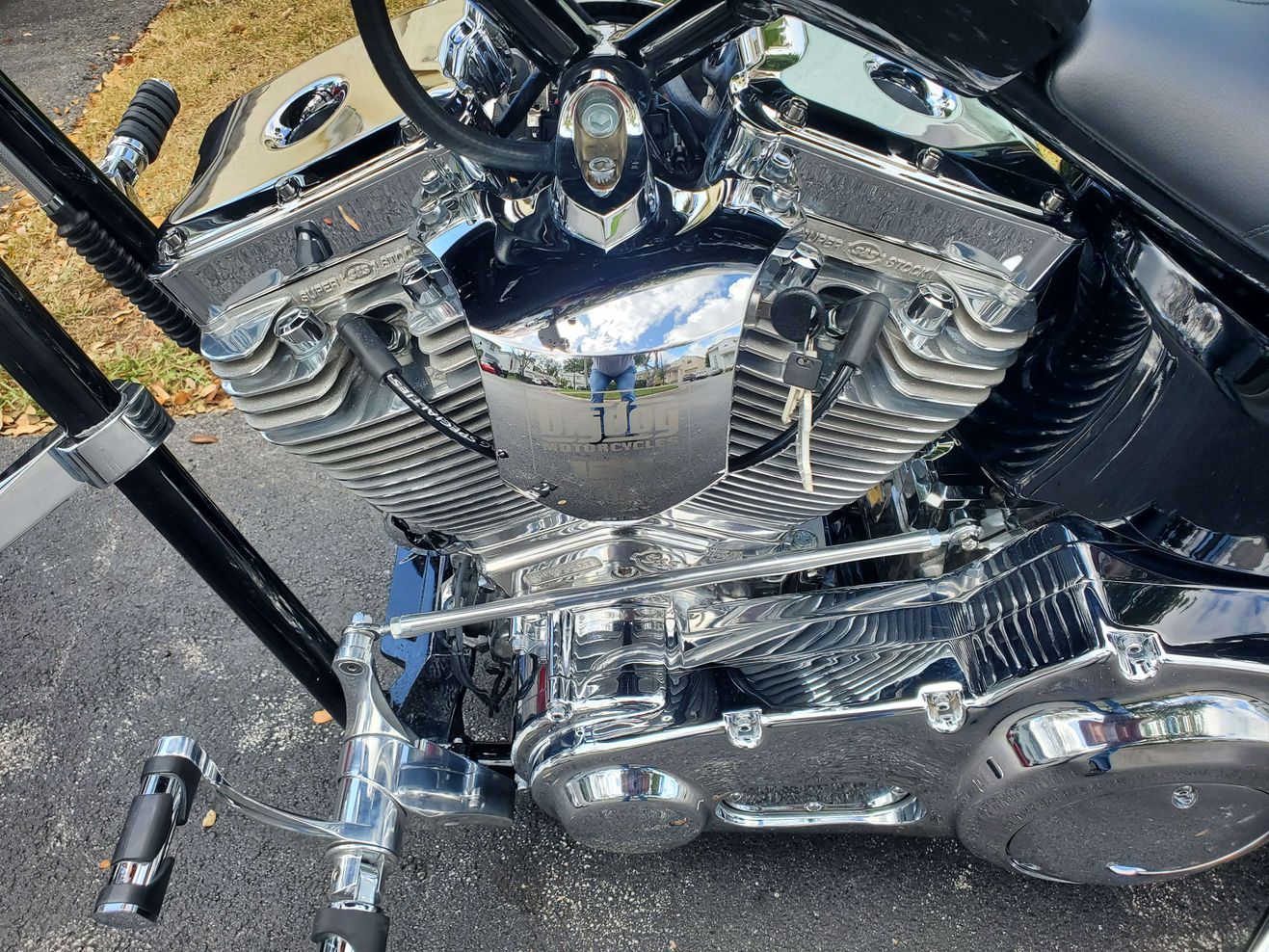

Engine	S&S SuperSidewinder, Overhead Valve, 45-Degree, V-Twin
Displacement	124 Cubic Inches (2,032 CC)
Bore and Stroke	4-1/8 x 4-5/8 Inches
Ignition	S&S Superstock
Transmission	6-Speed, Right-Side-Drive
Primary Drive	Diamond endless-link Chain
Final Drive	1-1/8 Belt, 130-Tooth
Front Brake Caliper	Performance Machine, 4-piston, Differential Bore
Rear Brake Caliper	Performance Machine, 4-Piston, Standard Bore

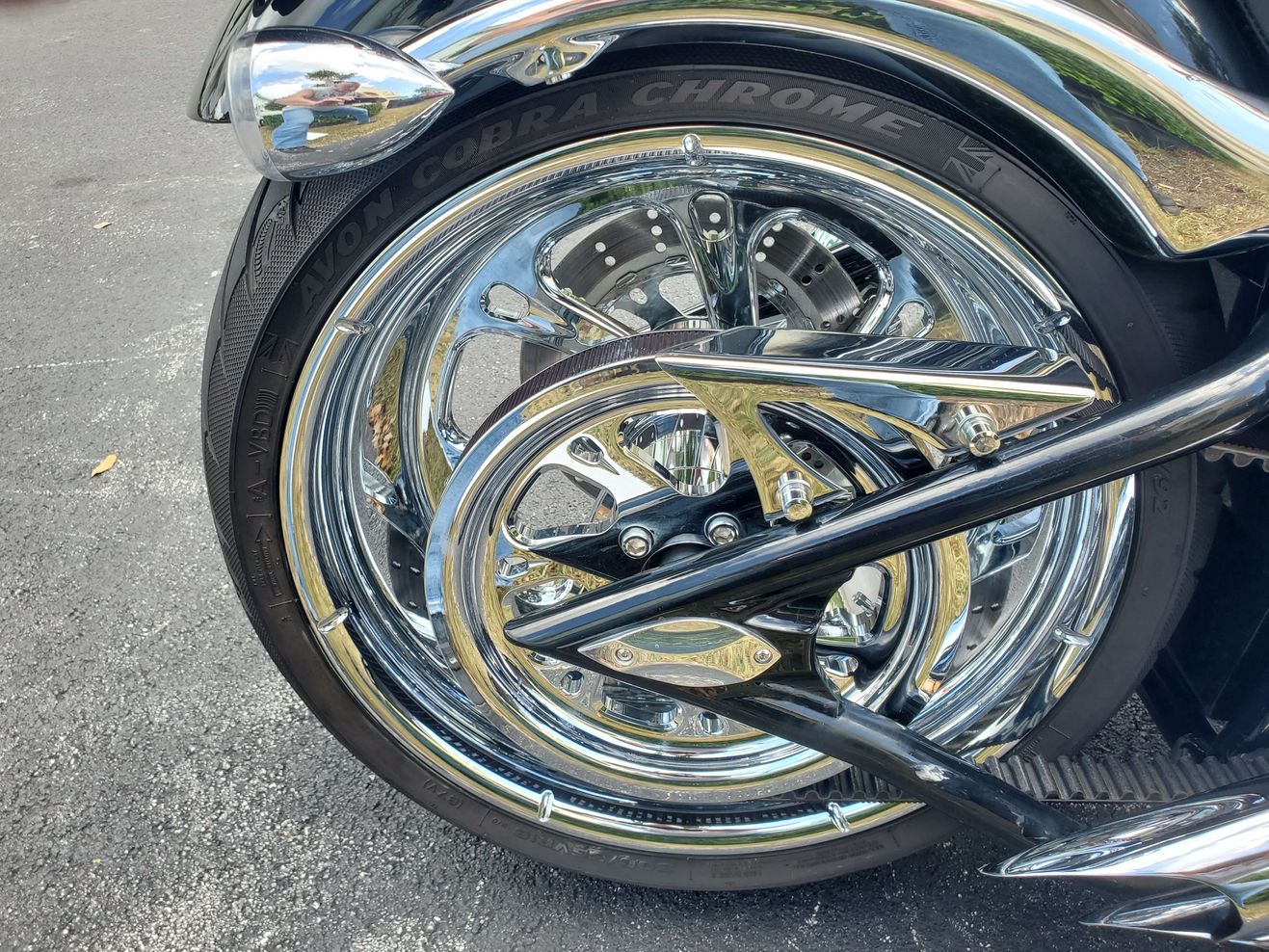

Rear Tire	300/35VR18

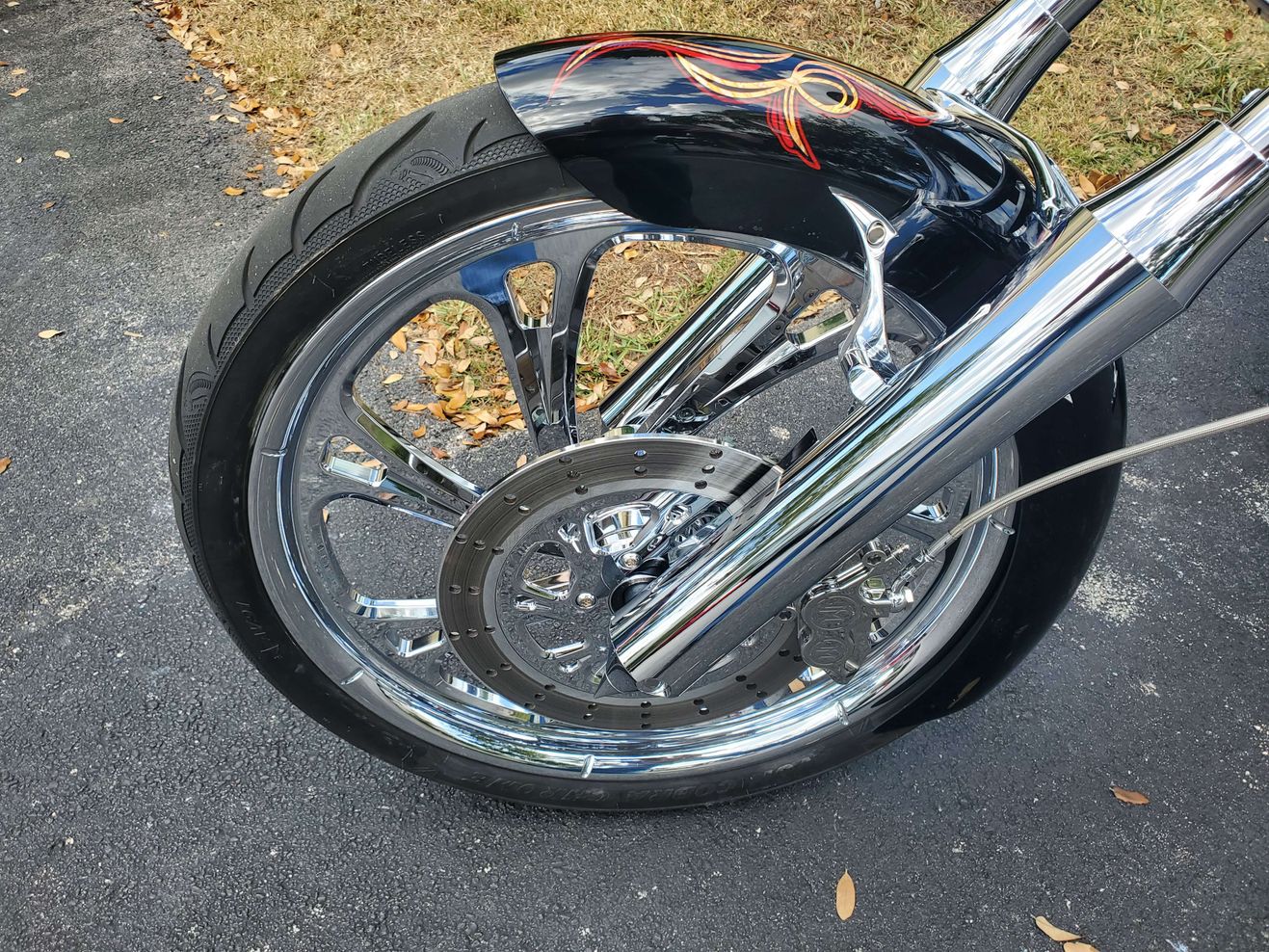

Front Tire	120/70-21
Charging System	32 Amp
Battery	Sealed AGM, High CCA output
Curb Weight (Wet)	716 Pounds
GVWR	1130 LBS
Fuel Capacity - Total	4.4 Gallons
Oil Capacity	3 Quarts 20W-50
Frame Rake	39 Degrees
Backbone Stretch (Over Stock)	4-Inches
Downtubes Stretch (Over Stock)	8 Inches
Frame Tubing	Heavy-Duty, 1-1/2 inch O.D.
Front Suspension	Telescopic, 41mm
Seat Height	24.25 Inches
Ground Clearance	4 Inches
Wheel Base	82 Inches
Overall Length	108 Inches (9 feet)
